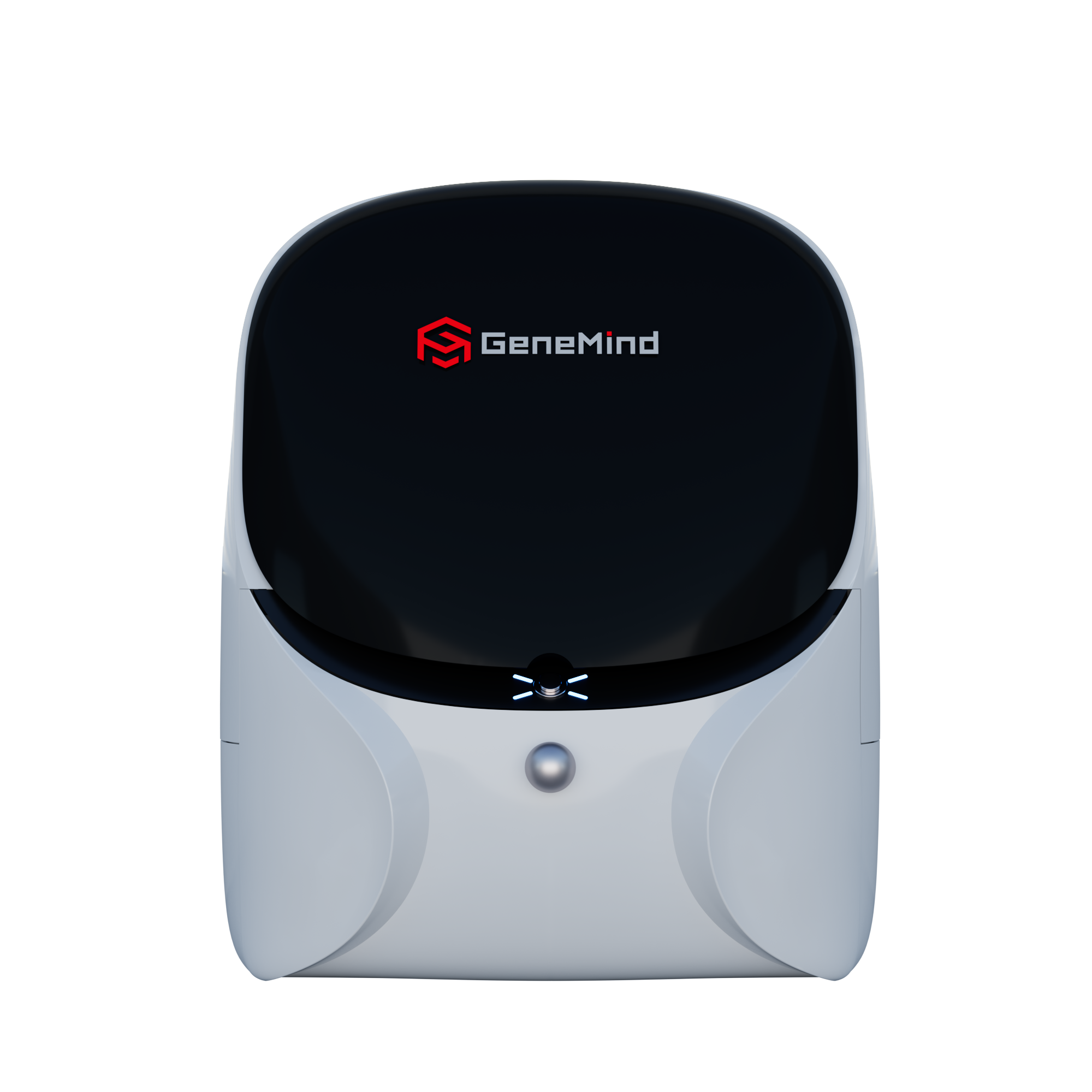

NanaLyzer 96
NanaLyzer 96 is nucleic acid fragment analyzer which used to analyze the size and concentration of nucleic acid (DNA or RNA) fragments. NanaLyzer 96 does not require glue preparation and is easy to operate. It can complete the automatic detection of maximum 96 samples within 45 minutes. It can be applied to key quality inspection links such as the integrity detection of DNA and RNA, cfDNA quality control, and NGS library quality control, providing reliable data support for your life science research and molecular diagnosis process.
Not all products displayed, including sequencing instruments and consumables, are available for sale or distribution in every country. For availability and ordering, please contact GeneMind or your local authorized representative to confirm the status in your region before ordering.
Swift
- 16 samples analyzed in 8 minutes
- 96 samples analyzed in 45 minutes
Convenience
- No gel preparation required
- One-click operation without complex parameter setting
- A streamlined,minimal-effort proprocessing workflow
Flexible
- Compatible with 1-96 samples per run
- Reduced waste on-demand lane activation
- Customizable analysis result
Precise
- Indenpendent sample loading to prevent cross-contamination
- High detection sensitivity for pg-level DNA/RNA analysis
| Reagent Type | Adaptable Sizing Range | Sensitivity | Quantification Range | Sample Loading | Integrity | Sample Scalability | Chips |
| DNA 1K | 35-1000 bp dsDNA fragment |
0.1 ng/μL | 0.1-50 ng/μL | 1 μL | – | 1-16 | 1 |
| High Sensitivity DNA 1K | 5 pg/μL | 10-1000 pg/μL | 2 μL | ||||
| DNA 5K | 100-5000 bp dsDNA fragment |
0.1 ng/μL | 0.1-50 ng/μL | 1 μL | |||
| High Sensitivity DNA 5K | 5 pg/μL | 10-1000 pg/μL | 2 μL | ||||
| Genomic DNA | 200-60000 bp dsDNA fragment |
0.5 pg/μL | 10-100 ng/μL | 1 μL | |||
| High Sensitivity Genomic DNA | 20 pg/μL | 0.5-10 ng/μL | 2 μL | ||||
| cfDNA | 50-800 bp dsDNA fragment |
20 pg/μL | 100-4000 pg/μL | 2 μL | – | ||
| RNA | Eukaryotic/Prokaryotic Total RNA |
5 pg/μL | 25-500 pg/μL | 1 μL | |||
| High Sensitivity RNA | 100 pg/μL | 500-10000 pg/μL | 2 μL |
| Parameter | Value |
| Deminsion | 420mm×600mm×500mm |
| Net Weight | About 25kg |
| Power Requirement | 100-240V AC, 50/60Hz |
| Operation Power | 500VA |
| Operation Environment | Temperature：-10℃-50℃ |
| Humidity：20%-80% (no condensation) | |
| Altitude：Below 3000 meters | |
| Computer Configuration | CPU：I5-13500H 2.6GHz |
| Memory：16GB | |
| Hard disk：500GB | |
| Operation system: Windows 11 | |
| Resolution：1920×1200 |
| PN | Product |
| M000047 | Fragment Analyzer-NanaLyzer 96 |
| M000058 | DNA 1K Fragment Analysis Reagent |
| M000059 | DNA 5K Fragment Analysis Reagent |
| M000060 | High Sensitivity DNA 1K Fragment Analysis Reagent |
| M000061 | High Sensitivity DNA 5K Fragment Analysis Reagent |
| M000062 | Genomic DNA Fragment Analysis Reagent |
| M000063 | High Sensitivity RNA Fragment Analysis Reagent |
| M000064 | cfDNA Fragment Analysis Reagent |
| M000065 | RNA Fragment Analysis Reagent |
| M000066 | High Sensitivity RNA Fragment Analysis Reagent |
Note: DNA 5K and High Sensitivity DNA 5K reagents will be available in June，2026；
DNA 1K and High Sensitivity DNA 1K reagents will be available in November，2026；
The other reagents will be available in 2027.
